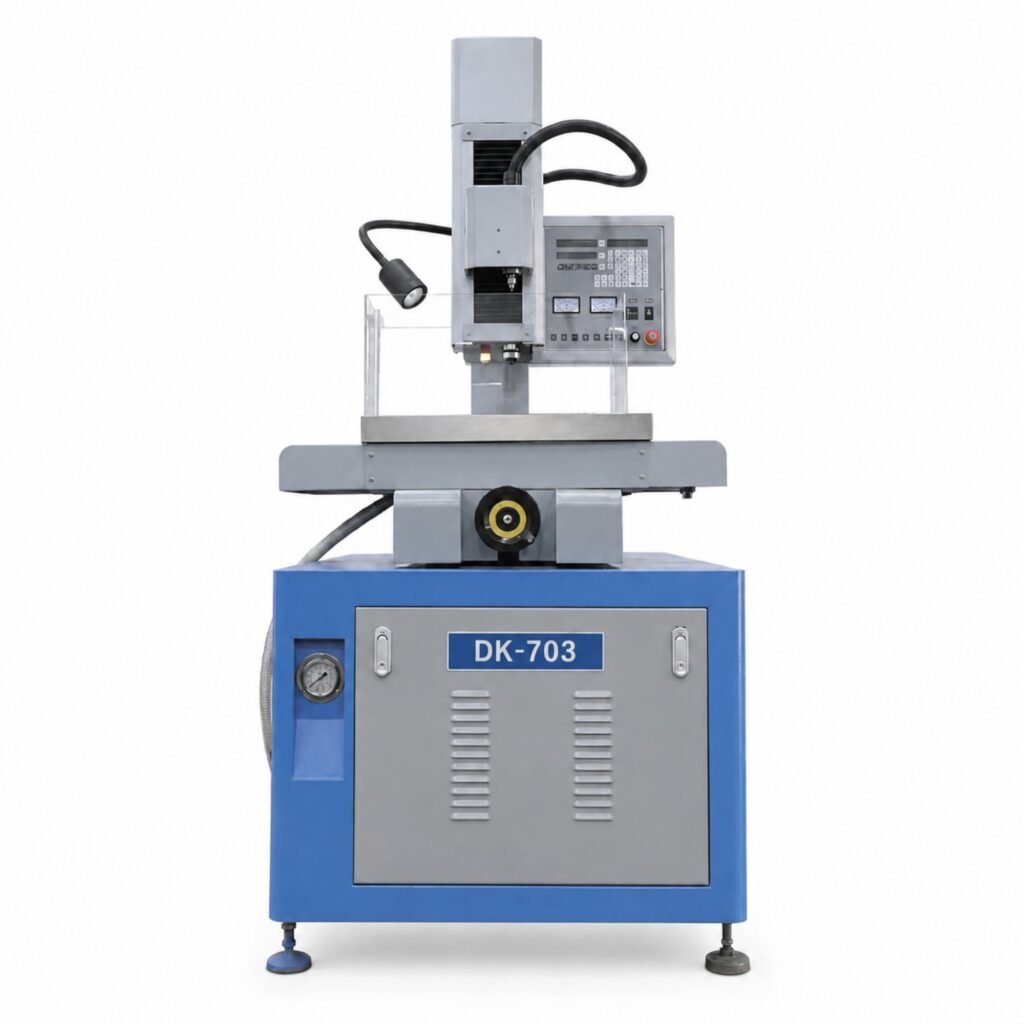

DK703 EDM Drilling Machine – Precision Hole Drilling
The DK703 EDM Drilling Machine is designed for precision electrical discharge drilling of small and deep holes in electrically conductive materials. It features a 330 × 480 mm worktable, 200 × 300 mm work surface travel, 280 mm spindle head stroke and an electrode diameter range of Ø0.3–Ø3.0 mm.
- Table size: 330 × 480 mm
- Work surface travel: 200 × 300 mm
- Spindle head stroke: 280 mm
- Servo travel: 300 mm
- Electrode diameter: Ø0.3–Ø3.0 mm
- Maximum processing speed: 40 mm/min
PRODUCT OVERVIEW
DK703 EDM Drilling Machine Overview
The DK703 EDM Drilling Machine is designed for precision electrical discharge drilling of electrically conductive workpieces. The EDM drilling process is particularly useful for producing small and deep holes in hard conductive materials where conventional mechanical drilling may be difficult.
The DK703 is equipped with a 330 × 480 mm worktable and provides 200 × 300 mm work surface travel. Its compact machining range makes it suitable for precision components, tooling, mold and die parts and start-hole drilling applications.
The machine features a 280 mm spindle head stroke and 300 mm servo travel. According to the supplied specification, the DK703 supports electrode diameters from Ø0.3 mm to Ø3.0 mm.
The maximum processing speed is specified at 40 mm/min, with a maximum depth-to-diameter ratio of 300:1. Pure water is used as the working fluid, with a specified working pressure of 7 MPa.
The supplied specification also lists a maximum machining current of 30 A, maximum power consumption of 3 kVA and automatic Z-axis control.
You can compare the DK703 with other models in our EDM Drilling Machines range or review typical machining uses on our Applications page.
DK703 Key Data
- 330 × 480 mm worktable
- 200 × 300 mm work surface travel
- 280 mm spindle head stroke
- Ø0.3–Ø3.0 mm electrode diameter
- 40 mm/min maximum processing speed
- 300:1 maximum depth-to-diameter ratio
Key Features of the DK703 EDM Drilling Machine
330 × 480 mm Worktable
The 330 × 480 mm worktable provides a practical platform for EDM drilling of electrically conductive precision components.
200 × 300 mm Work Surface Travel
The DK703 provides 200 × 300 mm work surface travel for accurate workpiece positioning within its available EDM drilling range.
Ø0.3–Ø3.0 mm Electrode Range
The DK703 supports electrode diameters from Ø0.3 mm to Ø3.0 mm for a range of small-hole EDM drilling applications.
40 mm/min Processing Speed
The supplied specification lists a maximum processing speed of 40 mm/min for suitable EDM drilling conditions.
300:1 Depth-to-Diameter Ratio
The DK703 is specified with a maximum depth-to-diameter ratio of 300:1 for deep-hole EDM drilling applications.
Automatic Z-Axis Control
Automatic Z-axis control supports controlled electrode feeding during the EDM drilling process.
DK703 EDM Drilling Machine Technical Specifications
Technical values below are based on the supplied DK703 EDM drilling machine specification.
| Specification | Unit | DK703 |
|---|---|---|
| Table Size | mm | 330 × 480 |
| Work Surface Travel | mm | 200 × 300 |
| Spindle Head Stroke | mm | 280 |
| Servo Travel | mm | 300 |
| Electrode Diameter | mm | Ø0.3–Ø3.0 |
| Maximum Processing Speed | mm/min | 40 |
| Maximum Depth-to-Diameter Ratio | — | 300:1 |
| Working Fluid | — | Pure Water |
| Working Pressure | MPa | 7 |
| Maximum Machining Current | A | 30 |
| Maximum Power Consumption | kVA | 3 |
| Control | — | Z-Axis Automatic |
Typical DK703 EDM Drilling Applications
The DK703 is suitable for EDM drilling of electrically conductive workpieces where small hole diameter, deep-hole capability, controlled electrode feeding and non-contact machining are required.
Deep Hole Drilling
Suitable for EDM drilling of deep, small-diameter holes in electrically conductive components within the specified 300:1 depth-to-diameter ratio.
Start Holes for Wire EDM
Suitable for producing start holes for subsequent Wire EDM profile cutting operations.
Mold & Die Components
EDM drilling of holes in conductive molds, dies, inserts and tooling components.
Precision Components
Suitable for precision hole drilling in electrically conductive mechanical and industrial components.
Hard Material Drilling
EDM drilling can be used on hard electrically conductive materials where conventional cutting tools may be less suitable.
General Metalworking
Electrical discharge drilling of conductive metal workpieces within the DK703 machining capacity.
Suitable Conductive Materials
EDM drilling requires electrically conductive workpiece materials. Actual drilling performance depends on material, electrode diameter, hole depth, working pressure and machining conditions.
Is the DK703 Suitable for Your Application?
Compare your drilling requirements with the DK703 capacity.
The DK703 EDM Drilling Machine may be considered when your workpiece dimensions and drilling requirements are compatible with its 330 × 480 mm worktable, 200 × 300 mm work surface travel and Ø0.3–Ø3.0 mm electrode diameter range.
The machine is specified with a maximum processing speed of 40 mm/min and a maximum depth-to-diameter ratio of 300:1. Compare these specifications with your required hole diameter, drilling depth, workpiece material and production requirements.
- Worktable requirement within 330 × 480 mm
- Work surface travel requirement within 200 × 300 mm
- Spindle head stroke requirement within 280 mm
- Servo travel requirement within 300 mm
- Electrode diameter requirement within Ø0.3–Ø3.0 mm
- Deep-hole requirement compatible with a maximum 300:1 depth-to-diameter ratio
If you are unsure which EDM drilling model is suitable, submit your workpiece and hole requirements through our Request a Quote page.
Compare EDM Drilling Machine Models
Compare EDM drilling machines according to worktable size, travel, electrode range, drilling speed and hole requirements.
DK703 EDM Drilling Machine FAQ
What is the worktable size of the DK703?
The supplied specification lists a 330 × 480 mm worktable.
What is the work surface travel of the DK703?
The DK703 provides 200 × 300 mm work surface travel.
What electrode diameters can the DK703 use?
The supplied specification lists an electrode diameter range of Ø0.3–Ø3.0 mm.
What is the maximum processing speed?
The maximum processing speed is specified at 40 mm/min.
What is the maximum depth-to-diameter ratio?
The supplied specification lists a maximum depth-to-diameter ratio of 300:1.
What working fluid does the DK703 use?
The supplied specification lists pure water as the working fluid, with a working pressure of 7 MPa.
Need a Quote for the DK703?
Send us your workpiece material, dimensions, required hole diameter, drilling depth, quantity and destination. We can review whether the DK703 is suitable for your EDM drilling application and discuss quotation requirements.
