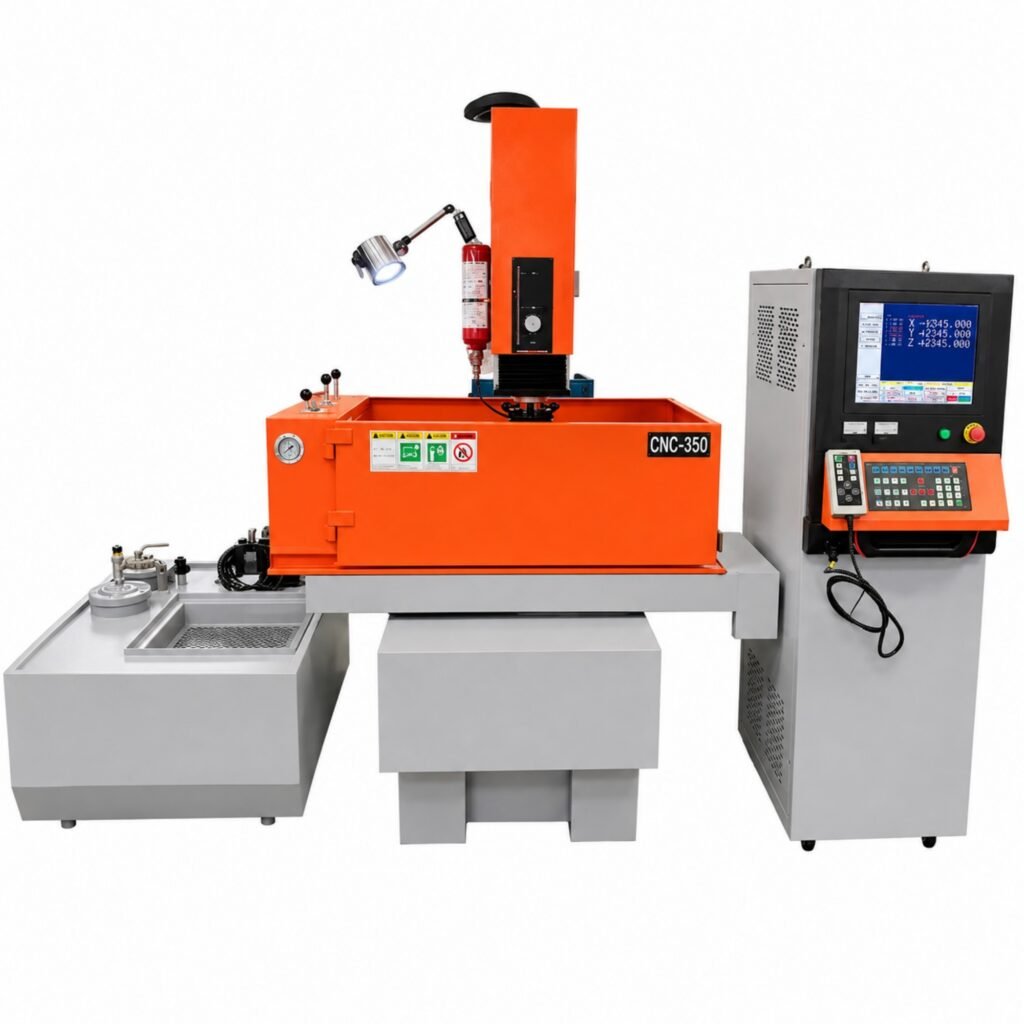

CNC EDM SINKER MACHINECNC350 CNC EDM Sinker Machine – Precision Die-Sinking EDM
The CNC350 CNC EDM Sinker Machine is designed for electrical discharge machining of precision cavities, molds, dies and other electrically conductive workpieces. It features a 600 × 350 mm workbench, 350 mm X-axis travel, 250 mm Y-axis travel and a maximum workpiece weight capacity of 800 kg.
- Workbench: 600 × 350 mm
- Working slot: 900 × 500 × 400 mm
- X/Y-axis travel: 350 × 250 mm
- Z-axis servo travel: 160 mm
- Maximum electrode weight: 120 kg
- Maximum workpiece weight: 800 kg
PRODUCT OVERVIEW
CNC350 CNC EDM Sinker Machine Overview
The CNC350 CNC EDM Sinker Machine is configured for electrical discharge machining of electrically conductive workpieces where cavity machining and controlled electrode movement are required.
The machine is equipped with a 600 × 350 mm workbench and a 900 × 500 × 400 mm working slot. X-axis travel is 350 mm and Y-axis travel is 250 mm, providing a practical machining range for mold, die and precision component applications.
The Z-axis specification includes 160 mm servo travel and 180 mm movement travel. According to the supplied specification, the machine has a maximum listed distance of 450 mm.
The CNC350 supports a maximum electrode weight of 120 kg and a maximum workpiece weight of 800 kg. The mechanical weight of the machine is approximately 1300 kg.
The machine is equipped with a built-in filtration arrangement and a 350 L filter tank capacity. Its listed packing dimensions are 1500 × 1500 × 2200 mm.
You can compare the CNC350 with other models in our EDM Sinker Machines range or review machining applications on our Applications page.
CNC350 Key Data
- 600 × 350 mm workbench
- 900 × 500 × 400 mm working slot
- 350 × 250 mm X/Y-axis travel
- 160 mm Z-axis servo travel
- 120 kg maximum electrode weight
- 800 kg maximum workpiece weight
Key Features of the CNC350 CNC EDM Sinker Machine
600 × 350 mm Workbench
The 600 × 350 mm workbench provides a practical platform for EDM machining of molds, dies and electrically conductive precision workpieces.
900 × 500 × 400 mm Working Slot
The CNC350 is specified with a 900 × 500 × 400 mm working slot for accommodating workpieces within its EDM sinking capacity.
350 × 250 mm X/Y Travel
The machine provides 350 mm X-axis travel and 250 mm Y-axis travel for controlled positioning during EDM cavity machining.
Z-Axis Servo Movement
The Z-axis specification includes 160 mm servo travel together with 180 mm movement travel.
800 kg Workpiece Capacity
The CNC350 is specified to support workpieces weighing up to 800 kg for EDM sinking applications.
120 kg Electrode Capacity
The machine supports a maximum electrode weight of 120 kg for cavity and die-sinking EDM machining.
CNC350 CNC EDM Sinker Machine Technical Specifications
Technical values below are based on the supplied CNC350 CNC EDM sinker machine specification.
| Specification | Unit | CNC350 |
|---|---|---|
| Workbench | mm | 600 × 350 |
| Working Slot | mm | 900 × 500 × 400 |
| X-Axis Travel | mm | 350 |
| Y-Axis Travel | mm | 250 |
| Z-Axis Servo Travel | mm | 160 |
| Z-Axis Movement Travel | mm | 180 |
| Maximum Distance | mm | 450 |
| Maximum Electrode Weight | kg | 120 |
| Maximum Workpiece Weight | kg | 800 |
| Mechanical Weight | kg | 1300 |
| Packing Size | mm | 1500 × 1500 × 2200 |
| Filter Tank Capacity | L | 350 |
| Filtration | — | Built-in |
| Estimated 40'HC Loading Quantity | sets | 10 |
Typical CNC350 CNC EDM Sinker Machine Applications
The CNC350 is suitable for die-sinking EDM of electrically conductive workpieces where cavity machining, detailed profiles and controlled electrode movement are required.
Mold Cavity Machining
Suitable for EDM machining of mold cavities and detailed internal profiles in electrically conductive materials.
Die Manufacturing
Suitable for electrical discharge machining of dies, inserts and precision tooling components.
Complex Cavity Machining
EDM sinking can be used for complex cavities and geometries that may be difficult to machine with conventional cutting tools.
Precision Tooling
Suitable for machining electrically conductive tooling components requiring controlled electrode-based material removal.
Hard Material Machining
EDM sinking can machine hard electrically conductive materials without relying on conventional cutting forces.
Industrial Components
Suitable for cavity and profile machining of conductive precision components within the CNC350 machining capacity.
Suitable Conductive Materials
EDM sinking requires electrically conductive workpiece materials. Actual machining performance depends on workpiece material, electrode material, cavity geometry and machining parameters.
Is the CNC350 Suitable for Your Application?
Compare your EDM machining requirements with the CNC350 capacity.
The CNC350 CNC EDM Sinker Machine may be considered when your workpiece and cavity machining requirements are compatible with its 600 × 350 mm workbench, 900 × 500 × 400 mm working slot and 350 × 250 mm X/Y-axis travel.
The machine supports a maximum workpiece weight of 800 kg and a maximum electrode weight of 120 kg. Compare these values with your workpiece dimensions, electrode configuration and EDM cavity requirements.
- Workbench requirement within 600 × 350 mm
- Working slot requirement within 900 × 500 × 400 mm
- X-axis travel requirement within 350 mm
- Y-axis travel requirement within 250 mm
- Workpiece weight requirement within 800 kg
- Electrode weight requirement within 120 kg
If you are unsure which CNC EDM sinker model is suitable, submit your workpiece dimensions, material, electrode information and machining requirements through our Request a Quote page.
Compare CNC EDM Sinker Machine Models
Compare CNC EDM sinker machines according to workbench size, axis travel, workpiece capacity, electrode capacity and machining requirements.
CNC350 CNC EDM Sinker Machine FAQ
What is the workbench size of the CNC350?
The supplied specification lists a 600 × 350 mm workbench.
What is the working slot size?
The CNC350 is specified with a 900 × 500 × 400 mm working slot.
What are the X and Y axis travels?
The CNC350 provides 350 mm X-axis travel and 250 mm Y-axis travel.
What is the Z-axis travel?
The supplied specification lists 160 mm Z-axis servo travel and 180 mm movement travel.
What is the maximum workpiece weight?
The CNC350 supports a maximum listed workpiece weight of 800 kg.
What is the maximum electrode weight?
The maximum electrode weight is specified at 120 kg.
What is the mechanical weight of the CNC350?
The supplied specification lists a mechanical weight of 1300 kg.
What is the filter tank capacity?
The supplied specification lists a 350 L filter tank capacity with built-in filtration.
Need a Quote for the CNC350?
Send us your workpiece material, dimensions, cavity requirements, electrode information, quantity and destination. We can review whether the CNC350 is suitable for your EDM sinking application and discuss quotation requirements.
