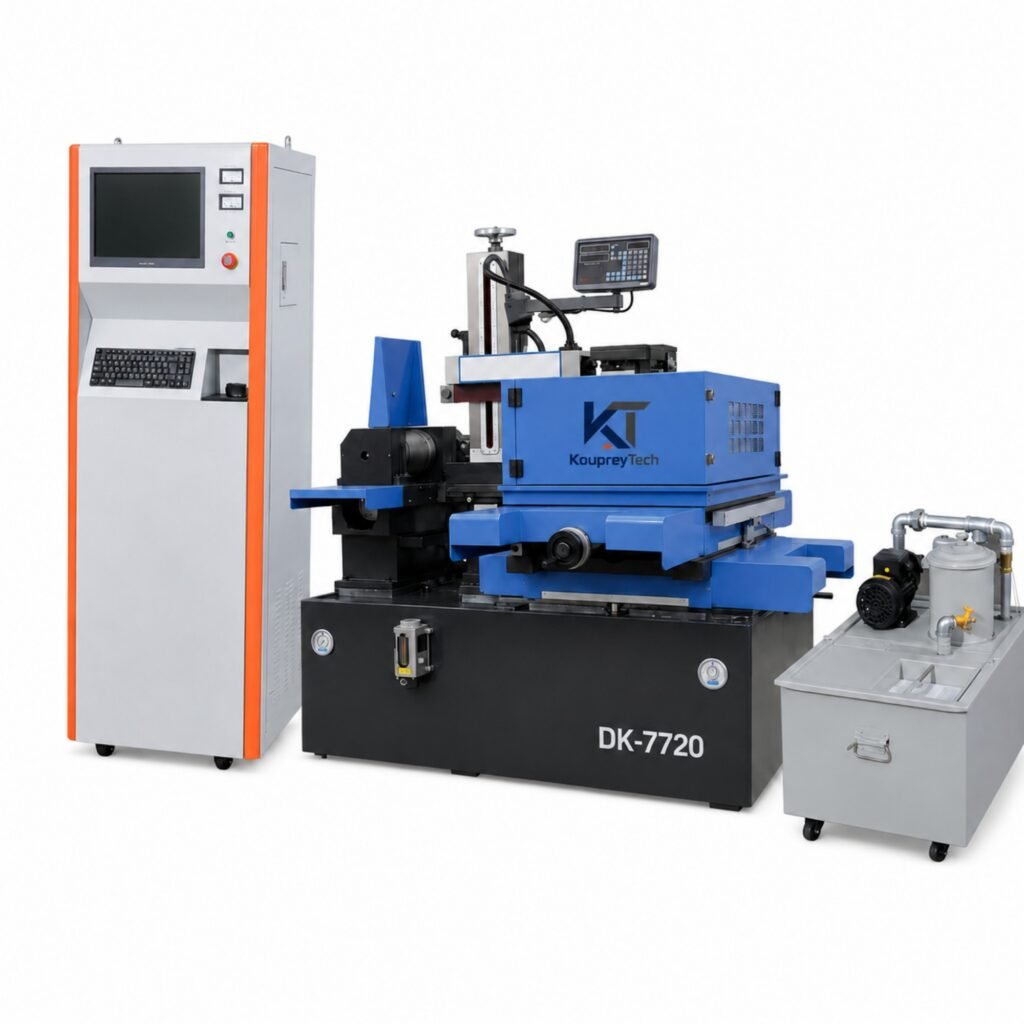

DK7720 Wire EDM Machine – Fast Wire Cutting
The DK7720 Wire EDM Machine is a fast wire cutting model designed for precision machining of electrically conductive workpieces. It features a 420 × 270 mm worktable, 250 × 200 mm worktable travel and a maximum machining thickness of 300 mm.
- Worktable size: 420 × 270 mm
- Worktable travel: 250 × 200 mm
- Maximum machining thickness: 300 mm
- Maximum machining taper: 6°
- Maximum processing load: 100 kg
- Machine weight: 900 kg
PRODUCT OVERVIEW
DK7720 Wire EDM Machine Overview
The DK7720 Wire EDM Machine is part of the fast wire EDM series and is designed for precision cutting of electrically conductive materials.
The machine is equipped with a 420 × 270 mm worktable and provides 250 × 200 mm worktable travel. According to the supplied specification, the maximum machining thickness is 300 mm.
For angled cutting requirements, the DK7720 is specified with a maximum machining taper of 6°.
The maximum processing load is 100 kg, while the machine weight is listed at 900 kg. Its overall dimensions are 1500 × 1000 × 1700 mm.
You can compare the DK7720 with other models in our Wire EDM Machines range or review typical machining uses on our Applications page.
DK7720 Key Data
- 420 × 270 mm worktable
- 250 × 200 mm worktable travel
- 300 mm maximum machining thickness
- 6° maximum machining taper
- 100 kg maximum processing load
- 900 kg machine weight
Key Features of the DK7720 Wire EDM Machine
Compact Worktable
The 420 × 270 mm worktable provides a compact platform for precision Wire EDM machining of suitable electrically conductive workpieces.
250 × 200 mm Worktable Travel
The DK7720 provides 250 × 200 mm worktable travel for precision profile cutting within its available machining range.
300 mm Machining Thickness
The supplied specification lists a maximum machining thickness of 300 mm.
6° Taper Cutting
The DK7720 supports a maximum machining taper of 6° according to the supplied specification.
100 kg Processing Load
The worktable supports a maximum processing load of 100 kg according to the supplied specification.
Compact Machine Footprint
The machine has overall dimensions of 1500 × 1000 × 1700 mm and a listed machine weight of 900 kg.
DK7720 Wire EDM Machine Technical Specifications
Technical values below are based on the supplied DK7720 Fast Wire EDM specification.
| Specification | Unit | DK7720 |
|---|---|---|
| Worktable Size | mm | 420 × 270 |
| Worktable Travel | mm | 250 × 200 |
| Maximum Machining Thickness | mm | 300 |
| Maximum Machining Taper | ° | 6 |
| Maximum Processing Load | kg | 100 |
| Machine Weight | kg | 900 |
| Machine Dimensions (L × W × H) | mm | 1500 × 1000 × 1700 |
Typical DK7720 Applications
The DK7720 can be considered for Fast Wire EDM machining of electrically conductive workpieces where compact workpiece size, 300 mm machining thickness and moderate processing load are required.
Mold & Die Components
Fast Wire EDM profile cutting of suitable conductive mold, die and tooling components.
Precision Components
Suitable for conductive components requiring controlled contours and precision profile cutting.
Tooling
Suitable for Wire EDM cutting of tooling, inserts and related conductive components.
Electrical Components
Profile cutting of suitable electrically conductive components within the available machining range.
Small Metal Parts
Suitable for selected small and medium conductive metal parts requiring profile cutting.
General Metalworking
Wire EDM cutting of electrically conductive metal workpieces within the DK7720 machining capacity.
Suitable Conductive Materials
Wire EDM requires electrically conductive workpiece materials. Actual machining capability depends on material, workpiece dimensions, thickness and cutting requirements.
Is the DK7720 Suitable for Your Application?
Compare your machining requirements with the DK7720 capacity.
The DK7720 Wire EDM Machine may be considered when your workpiece size and machining requirements are compatible with its 420 × 270 mm worktable, 250 × 200 mm worktable travel and 300 mm maximum machining thickness.
Before selecting the machine, compare your workpiece dimensions, weight, machining thickness and taper requirements with the listed technical specifications.
- Worktable size requirement within 420 × 270 mm
- Worktable travel requirement within 250 × 200 mm
- Maximum machining thickness requirement within 300 mm
- Maximum processing load requirement within 100 kg
- Maximum taper requirement within 6°
If you are unsure which model is suitable, submit your machining requirements through our Request a Quote page.
Compare Fast Wire EDM Models
Compare Fast Wire EDM models according to worktable size, travel, machining thickness and workpiece load requirements.
DK7720 Wire EDM Machine FAQ
What is the worktable size of the DK7720?
The supplied specification lists a 420 × 270 mm worktable.
What is the worktable travel?
The DK7720 provides 250 × 200 mm worktable travel.
What is the maximum machining thickness?
The maximum machining thickness is specified at 300 mm.
What is the maximum processing load?
The supplied specification lists a maximum processing load of 100 kg.
What is the maximum machining taper?
The supplied specification lists a maximum machining taper of 6°.
What are the overall machine dimensions?
The DK7720 is specified with overall dimensions of 1500 × 1000 × 1700 mm.
Need a Quote for the DK7720?
Send us your workpiece material, dimensions, machining thickness, taper requirements, quantity and destination. We can review whether the DK7720 is suitable for your application and discuss quotation requirements.
