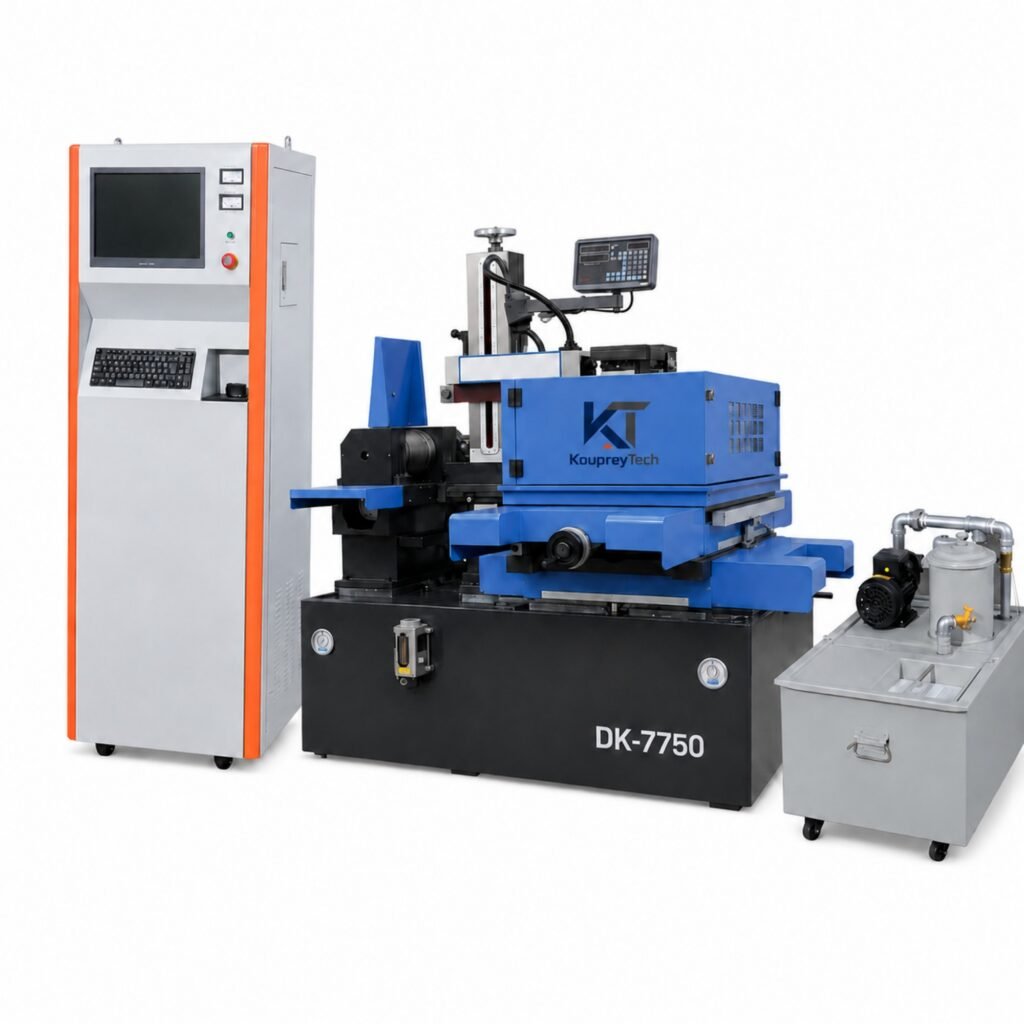

DK7750 Wire EDM Machine – Fast Wire Cutting
The DK7750 Wire EDM Machine is a fast wire cutting model designed for precision machining of electrically conductive workpieces. It features a 960 × 680 mm worktable, 500 × 630 mm worktable travel and a maximum machining thickness of 500 mm.
- Worktable size: 960 × 680 mm
- Worktable travel: 500 × 630 mm
- Maximum machining thickness: 500 mm
- Maximum machining taper: 6°–45° / 80 mm
- Maximum processing load: 500 kg
- Machine weight: 2300 kg
PRODUCT OVERVIEW
DK7750 Wire EDM Machine Overview
The DK7750 Wire EDM Machine is part of the Fast Wire EDM series and is designed for precision wire cutting of electrically conductive materials.
The machine is equipped with a 960 × 680 mm worktable and provides 500 × 630 mm worktable travel. According to the supplied specification, the maximum machining thickness is 500 mm.
For angled cutting requirements, the DK7750 is specified with a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
The maximum processing load is 500 kg, while the machine weight is listed at 2300 kg. Its overall dimensions are 2100 × 1550 × 2000 mm.
You can compare the DK7750 with other models in our Wire EDM Machines range or review typical machining uses on our Applications page.
DK7750 Key Data
- 960 × 680 mm worktable
- 500 × 630 mm worktable travel
- 500 mm maximum machining thickness
- 6°–45° / 80 mm maximum machining taper
- 500 kg maximum processing load
- 2300 kg machine weight
Key Features of the DK7750 Wire EDM Machine
Large Worktable
The 960 × 680 mm worktable provides increased capacity for Fast Wire EDM machining of larger electrically conductive workpieces.
500 × 630 mm Worktable Travel
The DK7750 provides 500 × 630 mm worktable travel for precision profile cutting within its available machining range.
500 mm Machining Thickness
The supplied specification lists a maximum machining thickness of 500 mm.
Wide Taper Cutting Range
The DK7750 supports a maximum machining taper range of 6°–45° at a specified workpiece thickness of 80 mm.
500 kg Processing Load
The worktable supports a maximum processing load of 500 kg according to the supplied specification.
Machine Size and Weight
The machine has overall dimensions of 2100 × 1550 × 2000 mm and a listed machine weight of 2300 kg.
DK7750 Wire EDM Machine Technical Specifications
Technical values below are based on the supplied DK7750 Fast Wire EDM specification.
| Specification | Unit | DK7750 |
|---|---|---|
| Worktable Size | mm | 960 × 680 |
| Worktable Travel | mm | 500 × 630 |
| Maximum Machining Thickness | mm | 500 |
| Maximum Machining Taper | — | 6°–45° / 80 mm |
| Maximum Processing Load | kg | 500 |
| Machine Weight | kg | 2300 |
| Machine Dimensions (L × W × H) | mm | 2100 × 1550 × 2000 |
Typical DK7750 Applications
The DK7750 can be considered for Fast Wire EDM machining of electrically conductive workpieces where larger workpiece size, 500 mm machining thickness, higher processing load and wide taper cutting capability are required.
Mold & Die Components
Fast Wire EDM profile cutting of suitable conductive mold, die and tooling components.
Precision Components
Suitable for conductive components requiring controlled contours and precision profile cutting.
Large Tooling
Suitable for Wire EDM cutting of larger tooling, inserts and related conductive components.
Electrical Components
Profile cutting of suitable electrically conductive components within the available machining range.
Medium & Large Metal Parts
Suitable for selected conductive workpieces requiring increased table travel and 500 mm machining thickness.
General Metalworking
Wire EDM cutting of electrically conductive metal workpieces within the DK7750 machining capacity.
Suitable Conductive Materials
Wire EDM requires electrically conductive workpiece materials. Actual machining capability depends on material, workpiece dimensions, thickness and cutting requirements.
Is the DK7750 Suitable for Your Application?
Compare your machining requirements with the DK7750 capacity.
The DK7750 Wire EDM Machine may be considered when your workpiece size and machining requirements are compatible with its 960 × 680 mm worktable, 500 × 630 mm worktable travel and 500 mm maximum machining thickness.
Before selecting the machine, compare your workpiece dimensions, weight, machining thickness and taper requirements with the listed technical specifications.
- Worktable size requirement within 960 × 680 mm
- Worktable travel requirement within 500 × 630 mm
- Maximum machining thickness requirement within 500 mm
- Maximum processing load requirement within 500 kg
- Taper cutting requirement compatible with 6°–45° / 80 mm specification
If you are unsure which model is suitable, submit your machining requirements through our Request a Quote page.
Compare Fast Wire EDM Models
Compare Fast Wire EDM models according to worktable size, travel, machining thickness and workpiece load requirements.
DK7750 Wire EDM Machine FAQ
What is the worktable size of the DK7750?
The supplied specification lists a 960 × 680 mm worktable.
What is the worktable travel?
The DK7750 provides 500 × 630 mm worktable travel.
What is the maximum machining thickness?
The maximum machining thickness is specified at 500 mm.
What is the maximum processing load?
The supplied specification lists a maximum processing load of 500 kg.
What is the maximum machining taper?
The supplied specification lists a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
How does the DK7750 compare with the DK7745?
The DK7750 provides a larger worktable, greater worktable travel and increased maximum machining thickness than the DK7745, while both models support a 6°–45° / 80 mm taper range.
Need a Quote for the DK7750?
Send us your workpiece material, dimensions, machining thickness, taper requirements, quantity and destination. We can review whether the DK7750 is suitable for your application and discuss quotation requirements.
