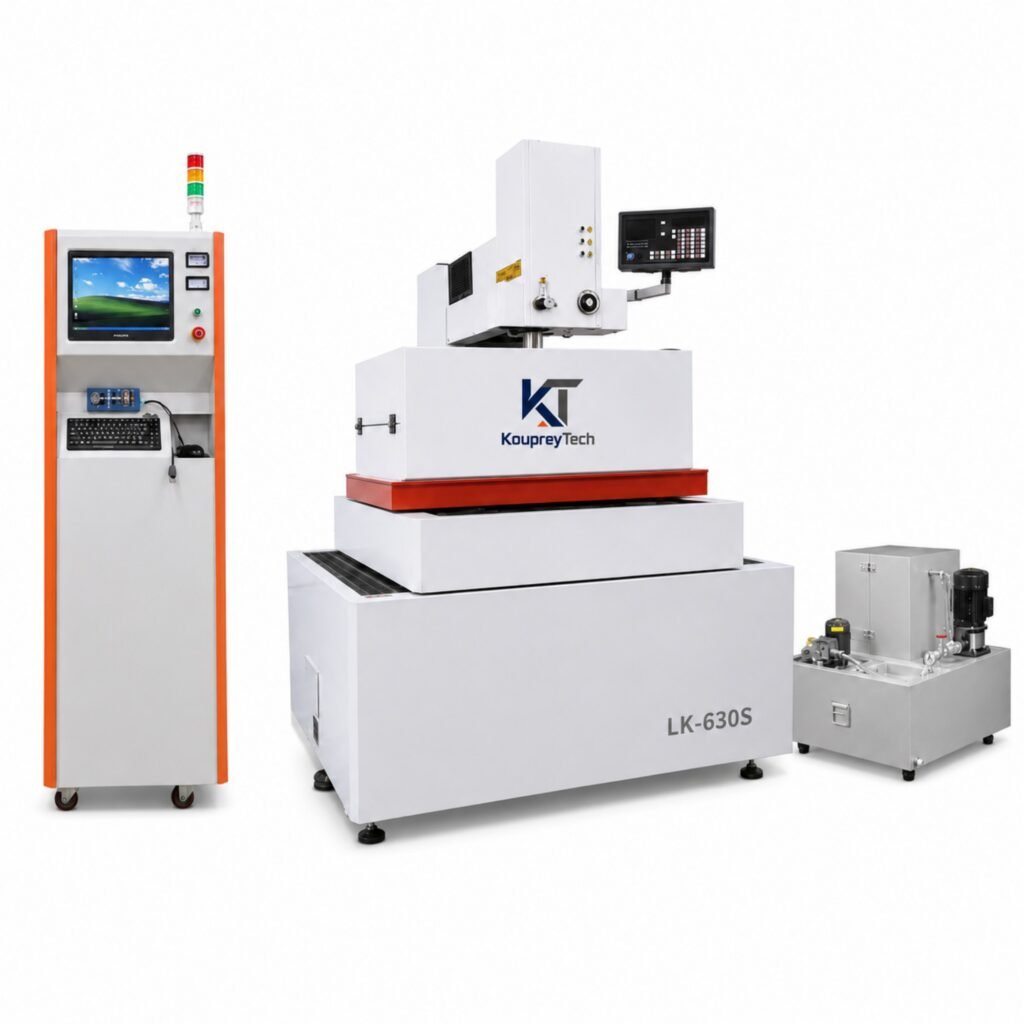

LK-630S Wire EDM Machine – Servo Mid-Speed WEDM
The LK-630S Wire EDM Machine is a servo mid-speed wire electrical discharge machining model designed for precision cutting of electrically conductive workpieces. It provides 500 × 630 × 300 mm X/Y/Z travel, a 1020 × 640 mm worktable and a maximum worktable load capacity of 800 kg.
- X / Y / Z travel: 500 × 630 × 300 mm
- Worktable size: 1020 × 640 mm
- Maximum worktable load: 800 kg
- Maximum cutting efficiency: ≥220 mm²/min
- Optimum surface roughness: Ra ≤1.0 μm
PRODUCT OVERVIEW
LK-630S Wire EDM Machine Overview
The LK-630S Wire EDM Machine belongs to the servo mid-speed Wire EDM series and is designed for applications requiring a larger worktable, increased X/Y travel and higher workpiece load capacity. It combines a 1020 × 640 mm worktable with 500 mm X-axis travel, 630 mm Y-axis travel and 300 mm Z-axis travel.
According to the supplied technical specification, the LK-630S provides X/Y positioning accuracy of ≤0.01 mm and repeated positioning accuracy of ≤0.005 mm. Multi-cut cutting accuracy is listed at ≤0.005 mm under the stated test conditions, while optimum surface roughness is specified as Ra ≤1.0 μm.
The machine supports electrode wire diameters from Ø0.12 to Ø0.20 mm and wire travelling speeds of 3–12 m/s. Its wire travelling system uses frequency control and two-way automatic tightening.
Maximum cutting efficiency is specified at ≥220 mm²/min, while common cutting efficiency is ≥140 mm²/min. The machine has a listed total weight of 3200 kg and overall dimensions of 2120 × 1760 × 2250 mm.
You can compare the LK-630S with other models in our
Wire EDM Machines
range or review typical machining uses on our
Applications
page.
LK-630S Key Data
- 500 × 630 × 300 mm X/Y/Z travel
- 1020 × 640 mm worktable
- 800 kg maximum worktable load
- ≤0.005 mm repeat positioning accuracy
- ≥220 mm²/min maximum cutting efficiency
- Ø0.12–Ø0.20 mm electrode wire
Key Features of the LK-630S Wire EDM Machine
Larger Machining Capacity
Provides 500 mm X-axis travel, 630 mm Y-axis travel and 300 mm Z-axis travel for Wire EDM machining of larger electrically conductive workpieces.
800 kg Worktable Capacity
The 1020 × 640 mm worktable supports workpieces weighing up to 800 kg according to the supplied machine specification.
Precision Positioning
X/Y positioning accuracy is specified at ≤0.01 mm, with repeat positioning accuracy of ≤0.005 mm.
Multi-Cut Capability
The CNC power supply supports 1–7 cutting cycles for repeated cutting and finishing passes according to machining requirements.
Wire Travelling System
The system uses frequency control, two-way automatic tightening and a wire travelling speed of 3–12 m/s.
Working Fluid Filtration
Filtration accuracy is specified at ≤10 μm and the system uses special cutting fluid for Wire EDM machining.
LK-630S Wire EDM Machine Technical Specifications
Technical values below are organized from the supplied LK-630S machine specification sheet.
| Specification | Unit | LK-630S |
|---|---|---|
| Machine | ||
| Machine Dimensions (L × W × H) | mm | 2120 × 1760 × 2250 |
| Total Weight | kg | 3200 |
| Workbench & Travel | ||
| Workbench Size | mm | 1020 × 640 |
| X-Axis Travel | mm | 500 |
| Y-Axis Travel | mm | 630 |
| Z-Axis Travel | mm | 300 |
| CNC Power Supply | ||
| Pulse Width | μs | 1–250 |
| Wire Speed Setting | — | 0–3 |
| Cutting Number | time | 1–7 |
| Minimum Mechanical Driving Equivalent | μm | 1 |
| Pulse Resolution | μm | 0.4 |
| Processing Capacity | ||
| Spindle Stroke (Electrically Adjustable) | mm | 250 |
| Maximum Cutting Slope / Workpiece Thickness | — | 6°–30° / 80 mm |
| Maximum Workbench Load | kg | 800 |
| Machining Accuracy | ||
| Positioning Accuracy X/Y | mm | ≤0.01 |
| Repeat Positioning Accuracy X/Y | mm | ≤0.005 |
| Multi-Cut Cutting Accuracy | mm | ≤0.005 (40 mm, one cut and two repair cuts, SKD11 or Cr12, HRC58) |
| Optimum Surface Roughness | μm | Ra ≤1.0 (SKD11 or Cr12, HRC58) |
| Processing Efficiency | ||
| Maximum Cutting Efficiency | mm²/min | ≥220 |
| Common Cutting Efficiency | mm²/min | ≥140 |
| Maximum Processing Current | A | 6–8 |
| No-Load Voltage of Machining Power Supply | V | 100 |
| Power Consumption | kW | ≤2.3 |
| Wire Travelling System | ||
| Electrode Wire Diameter | mm | Ø0.12–Ø0.20 |
| Wire Barrel Travel Control | — | Frequency Control |
| Tightening Method | — | Two-Way Automatic Tightening |
| Wire Travelling Speed | m/s | 3–12 |
| Working Fluid System | ||
| Filtration Accuracy | μm | ≤10 |
| Filtration Mode | — | Slow-Walking Filtration |
| Working Fluid | — | Special Cutting Fluid |
| Electrical & Environment | ||
| Electrical Power | — | 380 V ±10% / 50–60 Hz / 2 kVA |
| Operating Temperature / Humidity | — | 15–30°C / 40–80% |
| Pressure | kPa | 86–106 |
Typical LK-630S Applications
The LK-630S can be considered for precision cutting of electrically conductive workpieces where larger workpiece dimensions and higher load capacity are required.
Mold & Die Components
Precision profile cutting of conductive mold, die, insert and tooling components within the available machining capacity.
Precision Components
Suitable for conductive components requiring controlled dimensional accuracy and complex cutting profiles.
Tooling
Suitable for Wire EDM cutting of precision tooling, inserts and related components.
Automotive Tooling
Can be considered for suitable tooling and precision component machining applications.
Electrical Components
Precision contour cutting of suitable electrically conductive components.
General Metalworking
Wire EDM machining of electrically conductive metal workpieces within the machine's available capacity.
Suitable Conductive Materials
Wire EDM requires electrically conductive workpiece materials. Actual machining parameters depend on material, thickness, accuracy and surface finish requirements.
Is the LK-630S Suitable for Your Application?
Compare your machining requirements with the LK-630S capacity.
The LK-630S Wire EDM Machine may be considered when your application requires greater X/Y travel, a larger worktable and higher workpiece load capacity than smaller servo mid-speed Wire EDM models.
Its 500 × 630 × 300 mm X/Y/Z travel, 1020 × 640 mm worktable and 800 kg maximum worktable load provide additional machining capacity for larger electrically conductive workpieces.
- X/Y/Z travel requirement within 500 × 630 × 300 mm
- Maximum worktable load requirement within 800 kg
- Electrode wire diameter within Ø0.12–Ø0.20 mm
- Workpiece suitable for electrical discharge machining
- Accuracy requirements compatible with the listed specification
If you are unsure which model is suitable, submit your machining requirements through our Request a Quote page.
Compare Servo Mid-Speed Wire EDM Models
Compare the LK-630S with other servo mid-speed Wire EDM models according to workpiece size, axis travel and worktable load requirements.
LK-630S Wire EDM Machine FAQ
What is the axis travel of the LK-630S?
The supplied specification lists 500 mm X-axis travel, 630 mm Y-axis travel and 300 mm Z-axis travel.
What is the maximum worktable load?
The LK-630S has a listed maximum worktable load capacity of 800 kg.
What is the worktable size?
The LK-630S is specified with a 1020 × 640 mm worktable.
What electrode wire diameter does the LK-630S use?
The machine specification lists an electrode wire diameter range of Ø0.12–Ø0.20 mm.
What is the maximum cutting efficiency?
Maximum cutting efficiency is specified at ≥220 mm²/min.
How does the LK-630S compare with the LK-500S?
The LK-630S provides larger X/Y travel, a larger worktable and a higher maximum worktable load than the LK-500S, making it suitable for applications requiring additional workpiece capacity.
