DZ703 EDM Drilling Machine – Precision Deep Hole Drilling

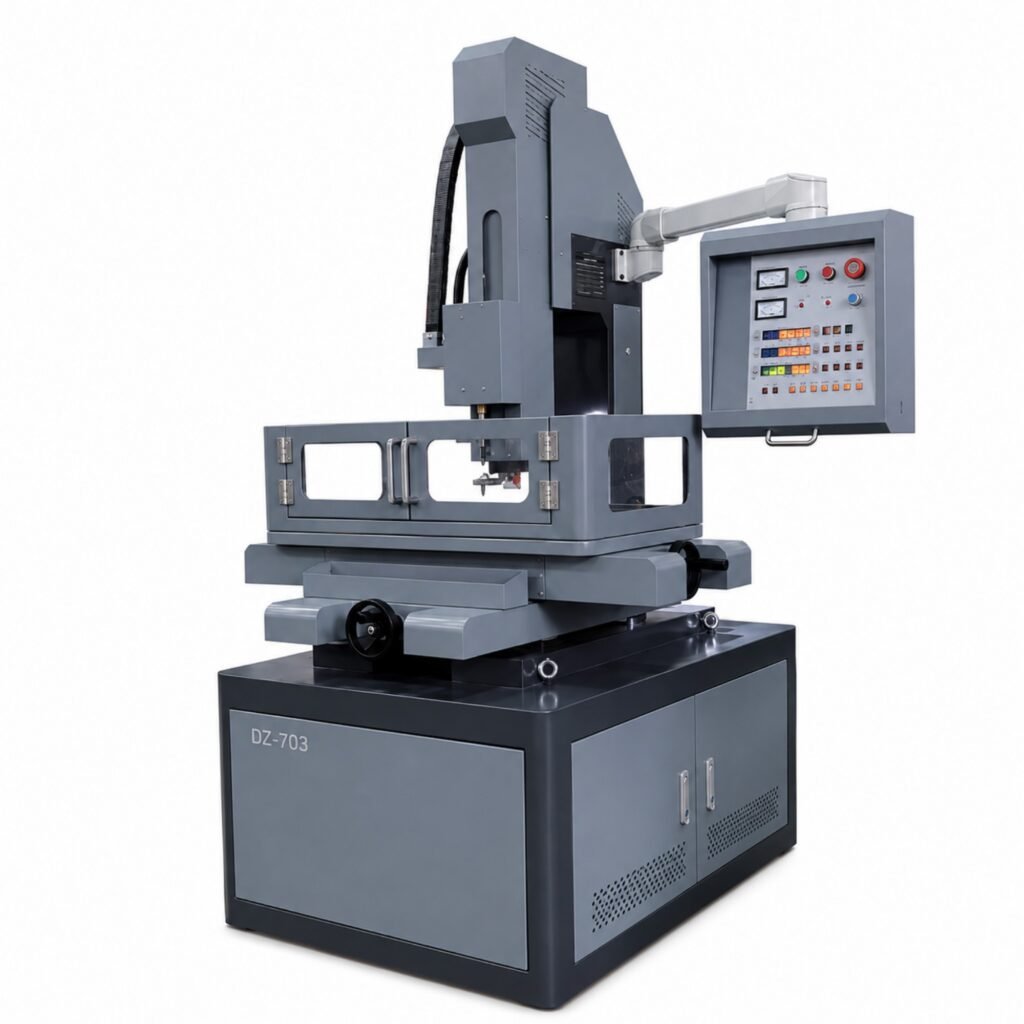

The DZ703 EDM Drilling Machine is designed for precision electrical discharge drilling of small and deep holes in electrically conductive materials. It features 400 × 300 mm X/Y-axis travel, 300 mm Z-axis travel, a 420 × 320 mm worktable and an electrode clamping range of Ø0.3–Ø3.0 mm.
- X/Y-axis travel: 400 × 300 mm
- Z-axis travel: 300 mm
- Secondary spindle stroke: 360 mm
- Electrode diameter: Ø0.3–Ø3.0 mm
- Maximum processing speed: 60 mm/min
- Maximum processing depth: 300 mm
PRODUCT OVERVIEW
DZ703 EDM Drilling Machine Overview
The DZ703 EDM Drilling Machine is designed for precision electrical discharge drilling of electrically conductive workpieces. EDM drilling is suitable for producing small and deep holes where conventional mechanical drilling may be difficult because of material hardness, hole depth or workpiece geometry.
The DZ703 provides 400 × 300 mm X/Y-axis travel and 300 mm Z-axis travel. A 420 × 320 mm worktable supports workpieces with a listed maximum load capacity of 200 kg.
The machine features a 360 mm secondary spindle stroke and supports electrode clamping diameters from Ø0.3 mm to Ø3.0 mm. The specified processing depth is 0–300 mm.
According to the supplied specification, the DZ703 provides a maximum processing speed of 60 mm/min, a maximum processing current of 30 A and a working pressure of 8 MPa.
The working fluid can be tap water or distilled water, with a 45 L working fluid tank. The machine uses grating-rule DRO for X/Y-axis positioning, subdivision stepping motor control for the Z axis and AC reduction motor control for the secondary spindle stroke.
You can compare the DZ703 with other models in our EDM Drilling Machines range or review typical machining uses on our Applications page.
DZ703 Key Data
- 400 × 300 mm X/Y-axis travel
- 300 mm Z-axis travel
- 360 mm secondary spindle stroke
- Ø0.3–Ø3.0 mm electrode diameter
- 0–300 mm processing depth
- 60 mm/min maximum processing speed
Key Features of the DZ703 EDM Drilling Machine
400 × 300 mm X/Y Travel
The DZ703 provides 400 × 300 mm X/Y-axis travel for controlled workpiece positioning during EDM drilling operations.
0–300 mm Processing Depth
The supplied specification lists a processing depth range of 0–300 mm for deep-hole EDM drilling applications.
Ø0.3–Ø3.0 mm Electrode Range
The DZ703 supports electrode clamping diameters from Ø0.3 mm to Ø3.0 mm for small-hole EDM drilling requirements.
60 mm/min Processing Speed
The supplied specification lists a maximum processing speed of 60 mm/min under suitable EDM drilling conditions.
8 MPa Working Pressure
The DZ703 is specified with an 8 MPa working pressure to support flushing during EDM hole drilling.
3-Axis DRO
A three-axis digital readout provides position indication for machine setup and drilling operations.
DZ703 EDM Drilling Machine Technical Specifications
Technical values below are based on the supplied DZ703 EDM drilling machine specification.
| Specification | Unit | DZ703 |
|---|---|---|
| X/Y Axis Travel | mm | 400 × 300 |
| Z-Axis Travel | mm | 300 |
| Secondary Spindle Stroke | mm | 360 |
| Table Size | mm | 420 × 320 |
| Worktable Load Capacity | kg | 200 |
| Overall Dimensions | mm | 1300 × 1200 × 1800 |
| Electrode Clamping Diameter | mm | Ø0.3–Ø3.0 |
| Machine Weight | kg | 700 |
| Working Fluid | — | Tap Water / Distilled Water |
| Working Fluid Tank Capacity | L | 45 |
| Processing Depth | mm | 0–300 |
| Maximum Depth-to-Diameter Ratio | — | 300:1 |
| Maximum Processing Speed | mm/min | 60 |
| Maximum Processing Current | A | 30 |
| Maximum Power Consumption | kVA | 3.6 |
| Working Pressure | MPa | 8 |
| Power Input | — | 380 V / 50 Hz |
| X/Y Axis Control | — | Grating Rule DRO |
| Z-Axis Control | — | Subdivision Stepping Motor Control |
| Secondary Stroke Control | — | AC Reduction Motor Control |
| Digital Display | — | 3-Axis DRO |
| Filtering Method | — | Replaceable Gap Type |
| Water Pump | — | Special Plunger Pump |
Typical DZ703 EDM Drilling Applications
The DZ703 is suitable for EDM drilling of electrically conductive workpieces where small-hole machining, deep-hole capability, controlled positioning and high-pressure flushing are required.
Deep Hole Drilling
Suitable for EDM drilling of small-diameter deep holes in electrically conductive workpieces within the specified processing range.
Start Holes for Wire EDM
Suitable for producing start holes before subsequent Wire EDM contour cutting operations.
Mold & Die Components
EDM drilling of precision holes in conductive molds, dies, inserts and tooling components.
Precision Components
Suitable for controlled hole drilling in electrically conductive precision mechanical components.
Hard Material Drilling
Electrical discharge drilling can machine hard conductive materials without conventional cutting-tool contact.
General Metalworking
EDM hole drilling of conductive metal workpieces within the DZ703 travel and processing capacity.
Suitable Conductive Materials
EDM drilling requires electrically conductive workpiece materials. Actual drilling performance depends on material, electrode diameter, drilling depth, flushing pressure and machining conditions.
Is the DZ703 Suitable for Your Application?
Compare your drilling requirements with the DZ703 capacity.
The DZ703 EDM Drilling Machine may be considered when your workpiece and drilling requirements are compatible with its 400 × 300 mm X/Y-axis travel, 300 mm Z-axis travel and Ø0.3–Ø3.0 mm electrode clamping range.
The machine provides a specified processing depth of up to 300 mm and a maximum processing speed of 60 mm/min. Compare these values with your required hole diameter, drilling depth, workpiece material and production requirements.
- X/Y-axis travel requirement within 400 × 300 mm
- Z-axis travel requirement within 300 mm
- Processing depth requirement within 0–300 mm
- Electrode diameter requirement within Ø0.3–Ø3.0 mm
- Workpiece load requirement within 200 kg
- Working pressure requirement compatible with 8 MPa
If you are unsure which EDM drilling model is suitable, submit your workpiece and hole requirements through our Request a Quote page.
Compare EDM Drilling Machine Models
Compare EDM drilling machines according to travel, processing depth, electrode range, drilling speed and workpiece requirements.
DZ703 EDM Drilling Machine FAQ
What is the X/Y-axis travel of the DZ703?
The DZ703 provides 400 × 300 mm X/Y-axis travel.
What is the processing depth of the DZ703?
The supplied specification lists a processing depth range of 0–300 mm.
What electrode diameters can the DZ703 use?
The supplied specification lists an electrode clamping diameter range of Ø0.3–Ø3.0 mm.
What is the maximum processing speed?
The maximum processing speed is specified at 60 mm/min.
What working fluid does the DZ703 use?
The supplied specification lists tap water or distilled water as the working fluid, with a 45 L working fluid tank.
What is the working pressure of the DZ703?
The supplied specification lists a working pressure of 8 MPa.
What digital display does the DZ703 use?
The supplied specification lists a three-axis digital readout (3-axis DRO).
What is the maximum worktable load?
The DZ703 worktable load capacity is specified at 200 kg.
Need a Quote for the DZ703?
Send us your workpiece material, dimensions, required hole diameter, drilling depth, quantity and destination. We can review whether the DZ703 is suitable for your EDM drilling application and discuss quotation requirements.
