ZNC EDM SINKER MACHINE
ZNC1060 ZNC EDM Sinker Machine – Precision Die-Sinking EDM
The ZNC1060 ZNC EDM Sinker Machine is designed for electrical discharge machining of large molds, dies, cavities and other electrically conductive workpieces. It features a 1400 × 900 mm workbench, 1000 mm left/right travel, 700 mm front/back travel and a maximum workpiece weight capacity of 4000 kg.
- Workbench: 1400 × 900 mm
- Work slot: 2000 × 1130 × 770 mm
- X/Y travel: 1000 × 700 mm
- Z-axis servo travel: 450 / 600 mm
- Maximum electrode weight: 200 kg
- Maximum workpiece weight: 4000 kg
PRODUCT OVERVIEW

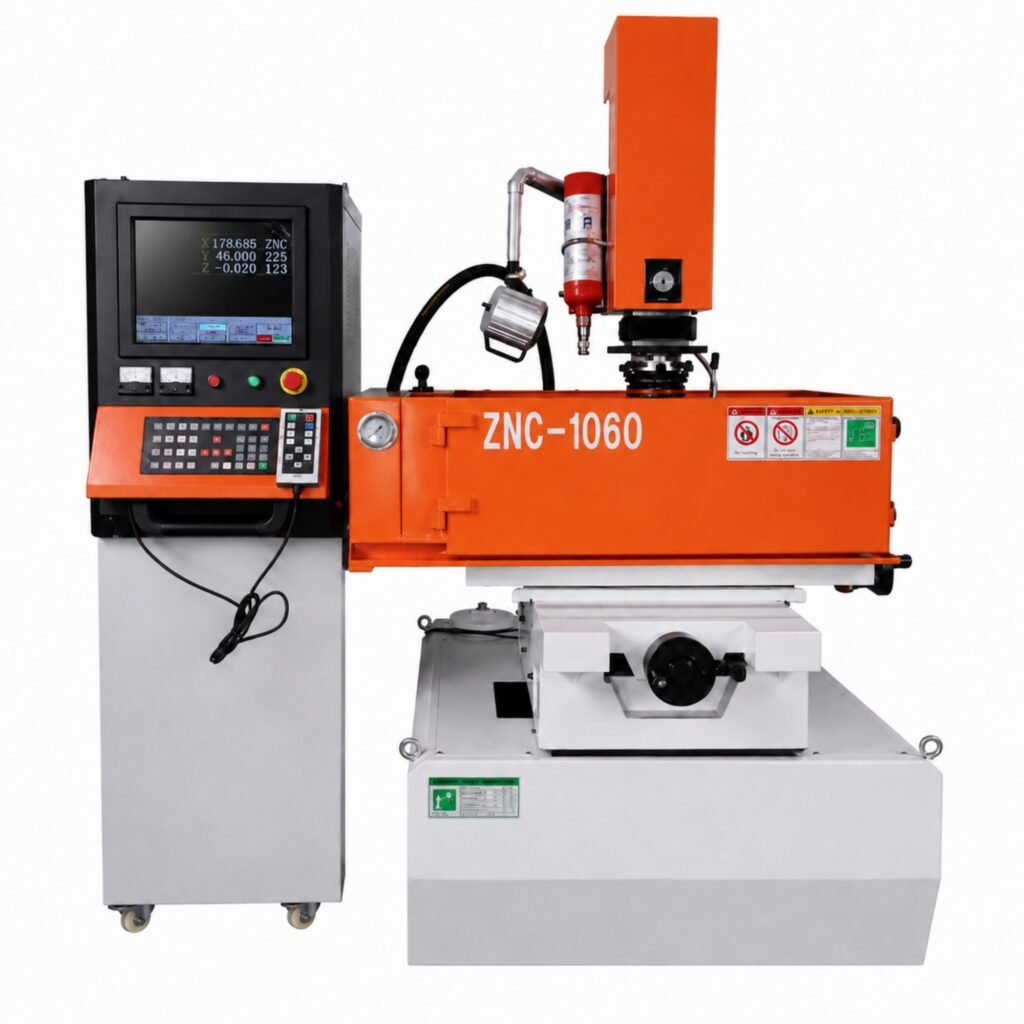

ZNC1060 ZNC EDM Sinker Machine Overview
The ZNC1060 ZNC EDM Sinker Machine is configured for electrical discharge machining of electrically conductive workpieces where large cavity machining, heavy workpiece capacity and controlled electrode movement are required.
The machine is equipped with a 1400 × 900 mm workbench and a 2000 × 1130 × 770 mm work slot. It provides 1000 mm left/right travel and 700 mm front/back travel for positioning large workpieces during EDM sinking operations.
The supplied specification lists Z-axis servo travel of 450 / 600 mm. The maximum distance between the spindle and table is specified as 906 / 1110 / 1260 mm.
The ZNC1060 supports a maximum electrode weight of 200 kg and a maximum workpiece weight of 4000 kg, providing substantial capacity for large molds, dies and heavy-duty EDM applications.
The machine has a listed weight of approximately 6000 kg and packing dimensions of 2580 × 2730 × 3210 mm. The filter box capacity is specified at 2000 L.
You can compare the ZNC1060 with other models in our EDM Sinker Machines range or review typical machining applications on our Applications page.
ZNC1060 Key Data
- 1400 × 900 mm workbench
- 2000 × 1130 × 770 mm work slot
- 1000 × 700 mm X/Y-axis travel
- 450 / 600 mm Z-axis servo travel
- 200 kg maximum electrode weight
- 4000 kg maximum workpiece weight
Key Features of the ZNC1060 ZNC EDM Sinker Machine
1400 × 900 mm Workbench
The 1400 × 900 mm workbench provides a large working platform for EDM machining of large molds, dies and heavy electrically conductive workpieces.
2000 × 1130 × 770 mm Work Slot
The ZNC1060 is specified with a 2000 × 1130 × 770 mm work slot for accommodating large workpieces within its EDM sinking capacity.
1000 × 700 mm X/Y Travel
The machine provides 1000 mm left/right travel and 700 mm front/back travel for controlled positioning of large workpieces during EDM machining.
450 / 600 mm Z-Axis Servo Travel
The supplied specification lists Z-axis servo travel of 450 / 600 mm for controlled electrode movement during die-sinking EDM operations.
4000 kg Workpiece Capacity
The ZNC1060 is specified to support workpieces weighing up to 4000 kg for large and heavy-duty EDM sinking applications.
200 kg Electrode Capacity
The machine supports a maximum electrode weight of 200 kg for large mold cavity, die and industrial EDM machining.
ZNC1060 ZNC EDM Sinker Machine Technical Specifications
Technical values below are based on the supplied ZNC1060 ZNC EDM sinker machine specification.
| Specification | Unit | ZNC1060 |
|---|---|---|
| Workbench | mm | 1400 × 900 |
| Work Slot | mm | 2000 × 1130 × 770 |
| Left / Right Travel | mm | 1000 |
| Front / Back Travel | mm | 700 |
| Z-Axis Servo Travel | mm | 450 / 600 |
| Z-Axis Movement Travel | — | N/A |
| Maximum Distance Between Spindle and Table | mm | 906 / 1110 / 1260 |
| Maximum Electrode Weight | kg | 200 |
| Maximum Workpiece Weight | kg | 4000 |
| Machine Weight | kg | 6000 |
| Packing Size | mm | 2580 × 2730 × 3210 |
| Filter Box Capacity | L | 2000 |
| Filter Weight | — | 1000 × 2 PC |
Typical ZNC1060 ZNC EDM Sinker Machine Applications
The ZNC1060 is suitable for heavy-duty die-sinking EDM of electrically conductive workpieces where very large molds, deep cavities, heavy workpieces and large electrode assemblies are required.
Large Mold Cavity Machining
Suitable for EDM machining of large mold cavities and detailed internal profiles in electrically conductive materials.
Large Die Manufacturing
Suitable for electrical discharge machining of large dies, inserts and heavy precision tooling components.
Heavy Workpiece EDM
The 4000 kg maximum workpiece capacity supports EDM sinking applications involving very large and heavy conductive workpieces.
Large Electrode Machining
The 200 kg maximum electrode capacity supports cavity machining with large and heavy electrode assemblies.
Deep Cavity Machining
The large work slot and supplied spindle-to-table distance options support a wide range of deep cavity EDM machining requirements.
Heavy Industrial Tooling
Suitable for cavity and profile machining of large conductive tooling and industrial components within the ZNC1060 machining capacity.
Suitable Conductive Materials
EDM sinking requires electrically conductive workpiece materials. Actual machining performance depends on workpiece material, electrode material, cavity geometry and machining parameters.
Is the ZNC1060 Suitable for Your Application?
Compare your EDM machining requirements with the ZNC1060 capacity.
The ZNC1060 ZNC EDM Sinker Machine may be considered when your workpiece and cavity machining requirements are compatible with its 1400 × 900 mm workbench, 2000 × 1130 × 770 mm work slot and 1000 × 700 mm X/Y travel.
The machine supports a maximum workpiece weight of 4000 kg and a maximum electrode weight of 200 kg. The supplied specification lists Z-axis servo travel of 450 / 600 mm and maximum spindle-to-table distances of 906 / 1110 / 1260 mm.
- Workbench requirement within 1400 × 900 mm
- Work slot requirement within 2000 × 1130 × 770 mm
- Left/right travel requirement within 1000 mm
- Front/back travel requirement within 700 mm
- Workpiece weight requirement within 4000 kg
- Electrode weight requirement within 200 kg
If you are unsure which ZNC EDM sinker model is suitable, submit your workpiece dimensions, material, electrode information and machining requirements through our Request a Quote page.
Compare ZNC EDM Sinker Machine Models
Compare ZNC EDM sinker machines according to workbench size, axis travel, workpiece capacity, electrode capacity and machining requirements.
ZNC1060 ZNC EDM Sinker Machine FAQ
What is the workbench size of the ZNC1060?
The supplied specification lists a 1400 × 900 mm workbench.
What is the work slot size?
The ZNC1060 is specified with a 2000 × 1130 × 770 mm work slot.
What are the X and Y travels?
The ZNC1060 provides 1000 mm left/right travel and 700 mm front/back travel.
What is the Z-axis travel?
The supplied specification lists 450 / 600 mm Z-axis servo travel. Z-axis movement travel is listed as N/A.
What is the maximum spindle-to-table distance?
The supplied specification lists 906 / 1110 / 1260 mm maximum spindle-to-table distance values.
What is the maximum workpiece weight?
The ZNC1060 supports a maximum listed workpiece weight of 4000 kg.
What is the maximum electrode weight?
The maximum electrode weight is specified at 200 kg.
What is the filter box capacity?
The supplied specification lists a 2000 L filter box capacity.
Need a Quote for the ZNC1060?
Send us your workpiece material, dimensions, cavity requirements, electrode information, quantity and destination. We can review whether the ZNC1060 is suitable for your EDM sinking application and discuss quotation requirements.
