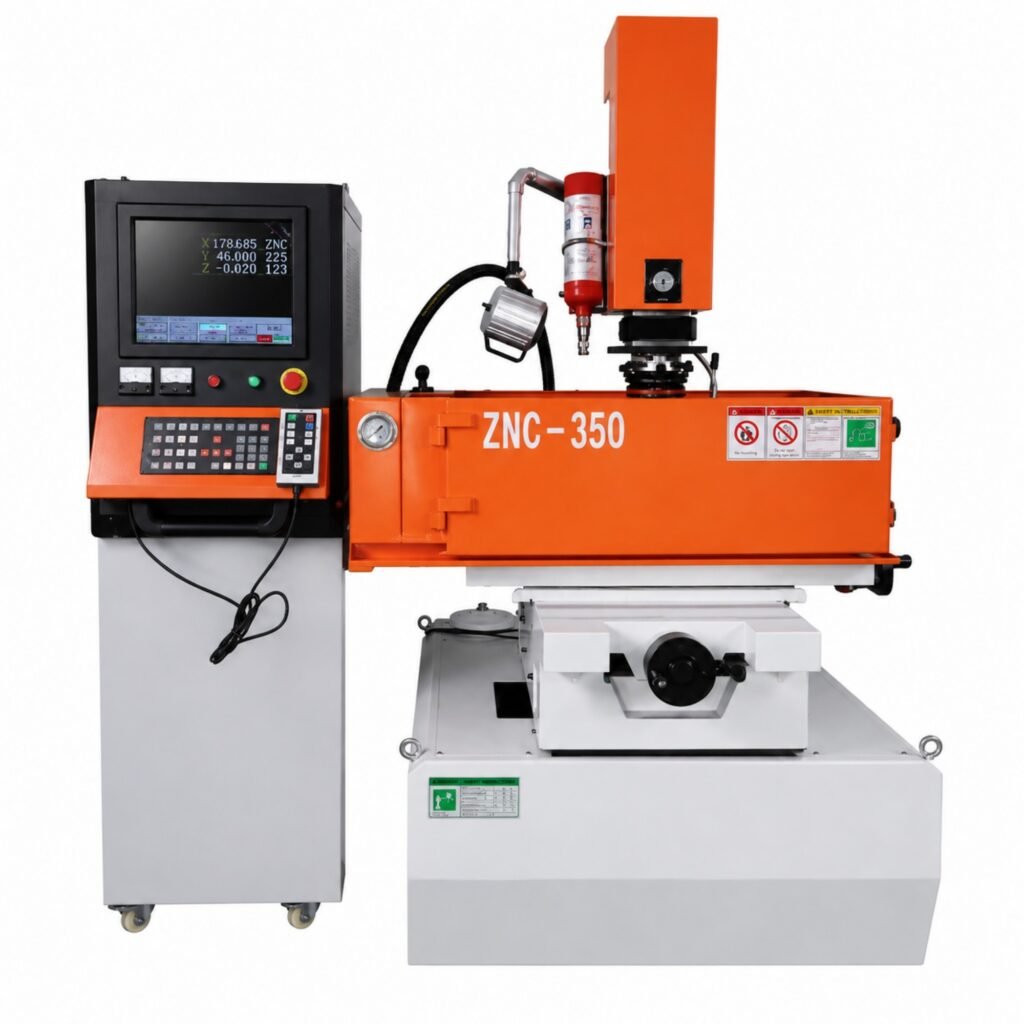

ZNC350 ZNC EDM Sinker Machine – Precision Die-Sinking EDM
The ZNC350 ZNC EDM Sinker Machine is designed for electrical discharge machining of molds, dies, cavities and other electrically conductive workpieces. It features a 600 × 300 mm workbench, 350 mm left/right travel, 250 mm front/back travel and a maximum workpiece weight capacity of 680 kg.
- Workbench: 600 × 300 mm
- Work slot: 780 × 500 × 350 mm
- X/Y travel: 350 × 250 mm
- Z-axis servo travel: 160 mm
- Maximum electrode weight: 30 kg
- Maximum workpiece weight: 680 kg
PRODUCT OVERVIEW
ZNC350 ZNC EDM Sinker Machine Overview
The ZNC350 ZNC EDM Sinker Machine is configured for electrical discharge machining of electrically conductive workpieces where cavity machining and controlled Z-axis electrode movement are required.
The machine is equipped with a 600 × 300 mm workbench and a 780 × 500 × 350 mm work slot. It provides 350 mm left/right travel and 250 mm front/back travel for workpiece positioning during EDM sinking operations.
The Z-axis specification includes 160 mm servo travel and 180 mm movement travel. The maximum distance between the spindle and table is specified at 420 mm.
The ZNC350 supports a maximum electrode weight of 30 kg and a maximum workpiece weight of 680 kg. The machine weight is approximately 1000 kg according to the supplied specification.
The machine is equipped with a built-in filtration system and a filter box capacity of 200 L.
You can compare the ZNC350 with other models in our EDM Sinker Machines range or review typical machining applications on our Applications page.
ZNC350 Key Data
- 600 × 300 mm workbench
- 780 × 500 × 350 mm work slot
- 350 × 250 mm X/Y-axis travel
- 160 mm Z-axis servo travel
- 30 kg maximum electrode weight
- 680 kg maximum workpiece weight
Key Features of the ZNC350 ZNC EDM Sinker Machine
600 × 300 mm Workbench
The 600 × 300 mm workbench provides a practical platform for EDM machining of molds, dies and electrically conductive precision workpieces.
780 × 500 × 350 mm Work Slot
The ZNC350 is specified with a 780 × 500 × 350 mm work slot for accommodating workpieces within its EDM sinking capacity.
350 × 250 mm X/Y Travel
The machine provides 350 mm left/right travel and 250 mm front/back travel for controlled workpiece positioning during EDM machining.
Z-Axis Servo Movement
The Z-axis specification includes 160 mm servo travel together with 180 mm movement travel.
680 kg Workpiece Capacity
The ZNC350 is specified to support workpieces weighing up to 680 kg for EDM sinking applications.
Built-In Filtration
The machine is equipped with built-in filtration and a 200 L filter box capacity for the EDM working fluid system.
ZNC350 ZNC EDM Sinker Machine Technical Specifications
Technical values below are based on the supplied ZNC350 ZNC EDM sinker machine specification.
| Specification | Unit | ZNC350 |
|---|---|---|
| Workbench | mm | 600 × 300 |
| Work Slot | mm | 780 × 500 × 350 |
| Left / Right Travel | mm | 350 |
| Front / Back Travel | mm | 250 |
| Z-Axis Servo Travel | mm | 160 |
| Z-Axis Movement Travel | mm | 180 |
| Maximum Distance Between Spindle and Table | mm | 420 |
| Maximum Electrode Weight | kg | 30 |
| Maximum Workpiece Weight | kg | 680 |
| Machine Weight | kg | 1000 |
| Packing Size | mm | To Be Confirmed |
| Filter Box Capacity | L | 200 |
| Filtration | — | Built-in |
