ZNC EDM SINKER MACHINE

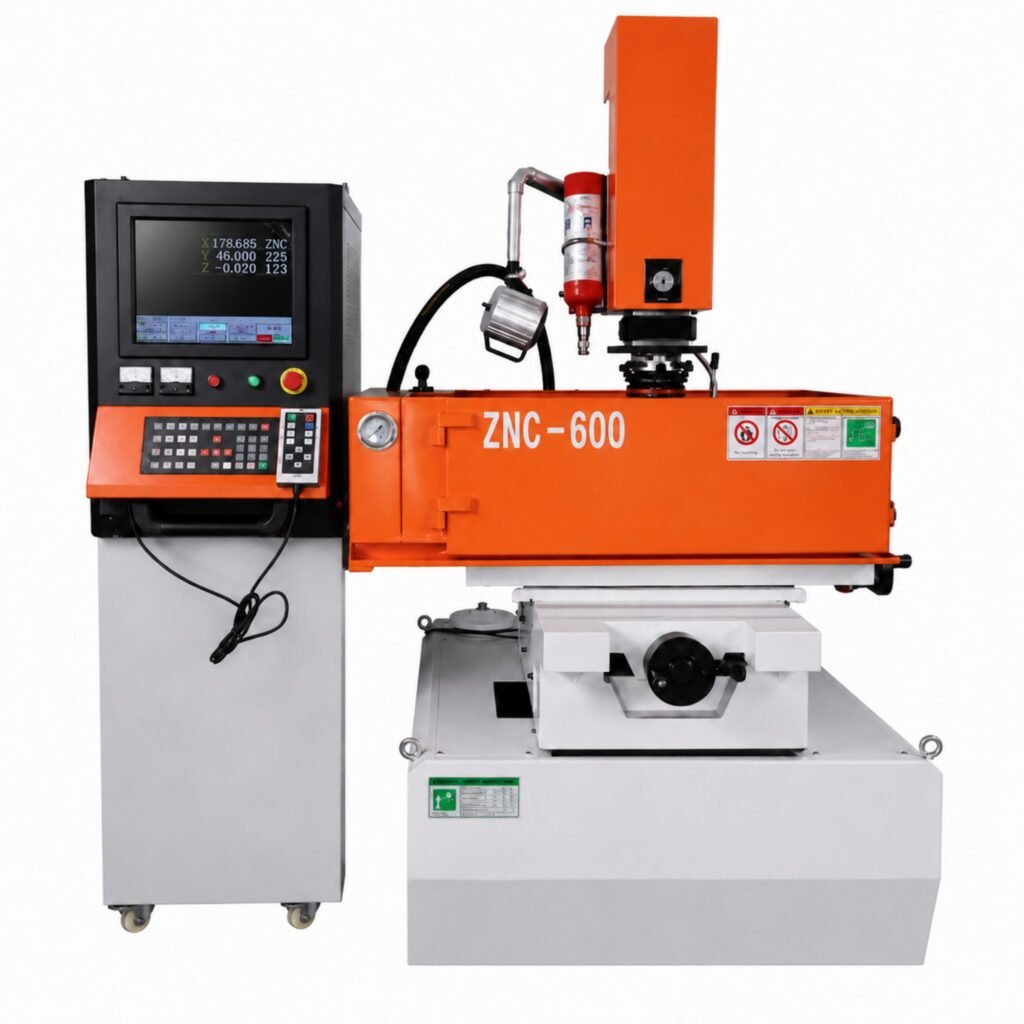

ZNC600 ZNC EDM Sinker Machine – Precision Die-Sinking EDM
The ZNC600 ZNC EDM Sinker Machine is designed for electrical discharge machining of large molds, dies, cavities and other electrically conductive workpieces. It features a 1000 × 600 mm workbench, 500 mm front/back travel, 400 mm Z-axis servo travel and a maximum workpiece weight capacity of 2000 kg.
- Workbench: 1000 × 600 mm
- Work slot: 1680 × 900 × 650 mm
- Left/right travel: 600 / 700 mm
- Front/back travel: 500 mm
- Maximum electrode weight: 100 kg
- Maximum workpiece weight: 2000 kg
PRODUCT OVERVIEW
ZNC600 ZNC EDM Sinker Machine Overview
The ZNC600 ZNC EDM Sinker Machine is configured for electrical discharge machining of electrically conductive workpieces where large cavity machining, heavy workpiece capacity and controlled Z-axis electrode movement are required.
The machine is equipped with a 1000 × 600 mm workbench and a 1680 × 900 × 650 mm work slot. The supplied specification lists left/right travel options of 600 / 700 mm and 500 mm front/back travel.
The Z-axis servo travel is specified at 400 mm. The supplied specification lists maximum spindle-to-table distances of 750 / 980 / 1230 mm, depending on the machine configuration.
The ZNC600 supports a maximum electrode weight of 100 kg and a maximum workpiece weight of 2000 kg, providing substantial capacity for large mold, die and cavity EDM applications.
The machine has a listed weight of approximately 4000 kg and packing dimensions of 2120 × 1930 × 2540 mm. The filter box capacity is specified at 840 L.
You can compare the ZNC600 with other models in our EDM Sinker Machines range or review typical machining applications on our Applications page.
ZNC600 Key Data
- 1000 × 600 mm workbench
- 1680 × 900 × 650 mm work slot
- 600 / 700 mm left/right travel
- 400 mm Z-axis servo travel
- 100 kg maximum electrode weight
- 2000 kg maximum workpiece weight
Key Features of the ZNC600 ZNC EDM Sinker Machine
1000 × 600 mm Workbench
The 1000 × 600 mm workbench provides a large working platform for EDM machining of molds, dies and heavy electrically conductive workpieces.
1680 × 900 × 650 mm Work Slot
The ZNC600 is specified with a 1680 × 900 × 650 mm work slot for accommodating large workpieces within its EDM sinking capacity.
600 / 700 mm Left / Right Travel
The supplied specification lists 600 / 700 mm left/right travel together with 500 mm front/back travel.
400 mm Z-Axis Servo Travel
The Z-axis servo travel is specified at 400 mm for controlled electrode movement during die-sinking EDM operations.
2000 kg Workpiece Capacity
The ZNC600 is specified to support workpieces weighing up to 2000 kg for large and heavy-duty EDM sinking applications.
100 kg Electrode Capacity
The machine supports a maximum electrode weight of 100 kg for large mold cavity, die and precision EDM machining.
ZNC600 ZNC EDM Sinker Machine Technical Specifications
Technical values below are based on the supplied ZNC600 ZNC EDM sinker machine specification.
| Specification | Unit | ZNC600 |
|---|---|---|
| Workbench | mm | 1000 × 600 |
| Work Slot | mm | 1680 × 900 × 650 |
| Left / Right Travel | mm | 600 / 700 |
| Front / Back Travel | mm | 500 |
| Z-Axis Servo Travel | mm | 400 |
| Z-Axis Movement Travel | — | N/A |
| Maximum Distance Between Spindle and Table | mm | 750 / 980 / 1230 |
| Maximum Electrode Weight | kg | 100 |
| Maximum Workpiece Weight | kg | 2000 |
| Machine Weight | kg | 4000 |
| Packing Size | mm | 2120 × 1930 × 2540 |
| Filter Box Capacity | L | 840 |
| Filter Weight | — | 300 |
Typical ZNC600 ZNC EDM Sinker Machine Applications
The ZNC600 is suitable for heavy-duty die-sinking EDM of electrically conductive workpieces where large molds, deep cavities, heavy workpieces and controlled electrode movement are required.
Large Mold Cavity Machining
Suitable for EDM machining of large mold cavities and detailed internal profiles in electrically conductive materials.
Large Die Manufacturing
Suitable for electrical discharge machining of large dies, inserts and precision tooling components.
Heavy Workpiece EDM
The 2000 kg maximum workpiece capacity supports EDM sinking applications involving large and heavy conductive workpieces.
Large Electrode Machining
The 100 kg maximum electrode capacity supports cavity machining with larger electrode assemblies.
Hard Material Machining
EDM sinking can machine hard electrically conductive materials without relying on conventional cutting forces.
Industrial Tooling & Components
Suitable for cavity and profile machining of large conductive tooling and industrial components within the ZNC600 machining capacity.
Suitable Conductive Materials
EDM sinking requires electrically conductive workpiece materials. Actual machining performance depends on workpiece material, electrode material, cavity geometry and machining parameters.
Is the ZNC600 Suitable for Your Application?
Compare your EDM machining requirements with the ZNC600 capacity.
The ZNC600 ZNC EDM Sinker Machine may be considered when your workpiece and cavity machining requirements are compatible with its 1000 × 600 mm workbench, 1680 × 900 × 650 mm work slot and supplied left/right travel of 600 / 700 mm.
The machine supports a maximum workpiece weight of 2000 kg and a maximum electrode weight of 100 kg. The supplied specification lists maximum spindle-to-table distances of 750 / 980 / 1230 mm.
- Workbench requirement within 1000 × 600 mm
- Work slot requirement within 1680 × 900 × 650 mm
- Left/right travel based on listed 600 / 700 mm specification
- Front/back travel requirement within 500 mm
- Workpiece weight requirement within 2000 kg
- Electrode weight requirement within 100 kg
If you are unsure which ZNC EDM sinker model is suitable, submit your workpiece dimensions, material, electrode information and machining requirements through our Request a Quote page.
Compare ZNC EDM Sinker Machine Models
Compare ZNC EDM sinker machines according to workbench size, axis travel, workpiece capacity, electrode capacity and machining requirements.
ZNC600 ZNC EDM Sinker Machine FAQ
What is the workbench size of the ZNC600?
The supplied specification lists a 1000 × 600 mm workbench.
What is the work slot size?
The ZNC600 is specified with a 1680 × 900 × 650 mm work slot.
What are the X and Y travels?
The supplied specification lists 600 / 700 mm left/right travel and 500 mm front/back travel.
What is the Z-axis travel?
The supplied specification lists 400 mm Z-axis servo travel. Z-axis movement travel is listed as N/A.
What is the maximum spindle-to-table distance?
The supplied specification lists 750 / 980 / 1230 mm maximum spindle-to-table distance values.
What is the maximum workpiece weight?
The ZNC600 supports a maximum listed workpiece weight of 2000 kg.
What is the maximum electrode weight?
The maximum electrode weight is specified at 100 kg.
What is the filter box capacity?
The supplied specification lists an 840 L filter box capacity.
Need a Quote for the ZNC600?
Send us your workpiece material, dimensions, cavity requirements, electrode information, quantity and destination. We can review whether the ZNC600 is suitable for your EDM sinking application and discuss quotation requirements.
