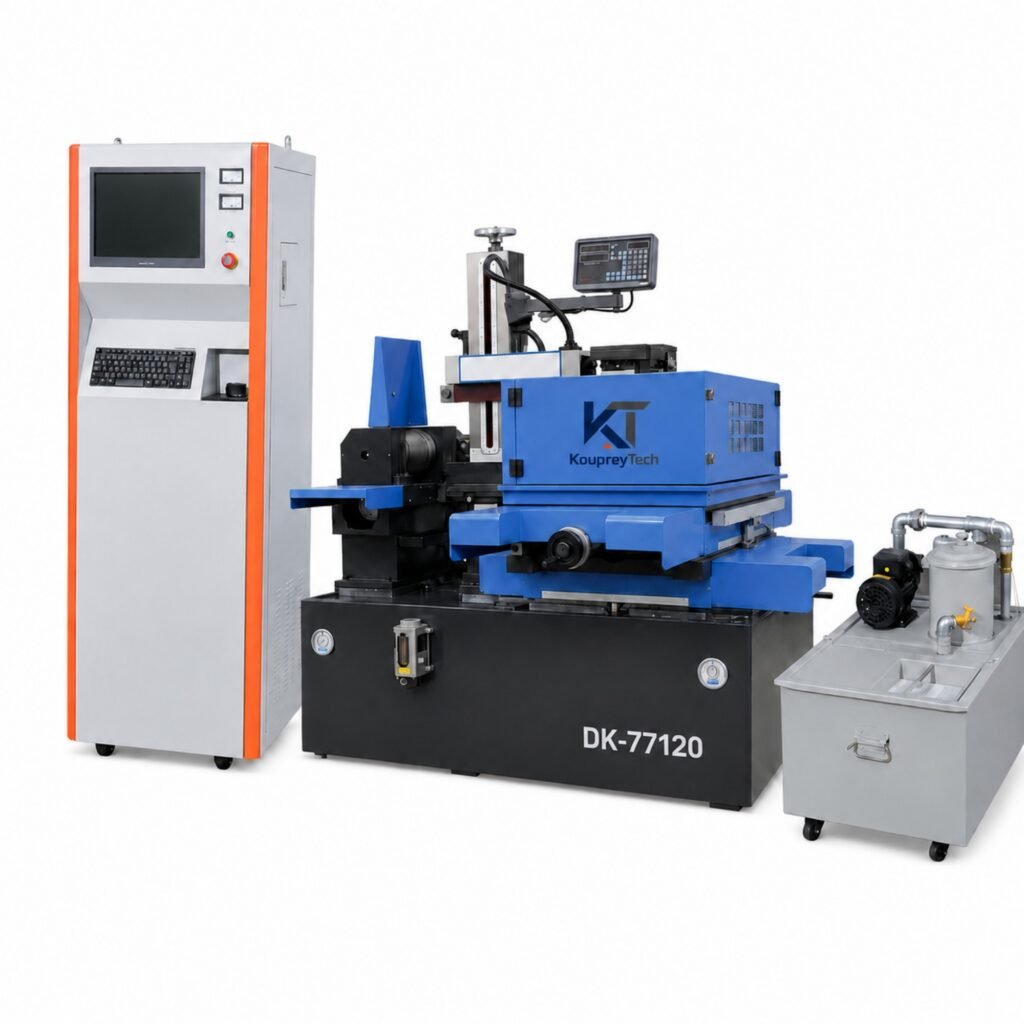

DK77120 Wire EDM Machine – Fast Wire Cutting
The DK77120 Wire EDM Machine is a heavy-duty fast wire cutting model designed for precision machining of large electrically conductive workpieces. It features a 1900 × 1500 mm worktable, 1200 × 1400 mm worktable travel and a maximum machining thickness of 1000 mm.
- Worktable size: 1900 × 1500 mm
- Worktable travel: 1200 × 1400 mm
- Maximum machining thickness: 1000 mm
- Maximum machining taper: 6°–45° / 80 mm
- Maximum processing load: 1800 kg
- Machine weight: 7500 kg
PRODUCT OVERVIEW
DK77120 Wire EDM Machine Overview
The DK77120 Wire EDM Machine is part of the Fast Wire EDM series and is designed for precision wire cutting of electrically conductive materials where very large workpiece capacity and extended machining range are required.
The machine is equipped with a 1900 × 1500 mm worktable and provides 1200 × 1400 mm worktable travel. According to the supplied specification, the maximum machining thickness is 1000 mm.
For angled cutting requirements, the DK77120 is specified with a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
The maximum processing load is 1800 kg, while the machine weight is listed at 7500 kg. Its overall dimensions are 3800 × 3800 × 2700 mm.
You can compare the DK77120 with other models in our Wire EDM Machines range or review typical machining uses on our Applications page.
DK77120 Key Data
- 1900 × 1500 mm worktable
- 1200 × 1400 mm worktable travel
- 1000 mm maximum machining thickness
- 6°–45° / 80 mm maximum machining taper
- 1800 kg maximum processing load
- 7500 kg machine weight
Key Features of the DK77120 Wire EDM Machine
Extra-Large Worktable
The 1900 × 1500 mm worktable provides substantial capacity for Fast Wire EDM machining of very large electrically conductive workpieces.
1200 × 1400 mm Worktable Travel
The DK77120 provides 1200 × 1400 mm worktable travel for precision profile cutting within its available machining range.
1000 mm Machining Thickness
The supplied specification lists a maximum machining thickness of 1000 mm.
Wide Taper Cutting Range
The DK77120 supports a maximum machining taper range of 6°–45° at a specified workpiece thickness of 80 mm.
1800 kg Processing Load
The worktable supports a maximum processing load of 1800 kg according to the supplied specification.
Heavy-Duty Machine Capacity
The machine has overall dimensions of 3800 × 3800 × 2700 mm and a listed machine weight of 7500 kg.
DK77120 Wire EDM Machine Technical Specifications
Technical values below are based on the supplied DK77120 Fast Wire EDM specification.
| Specification | Unit | DK77120 |
|---|---|---|
| Worktable Size | mm | 1900 × 1500 |
| Worktable Travel | mm | 1200 × 1400 |
| Maximum Machining Thickness | mm | 1000 |
| Maximum Machining Taper | — | 6°–45° / 80 mm |
| Maximum Processing Load | kg | 1800 |
| Machine Weight | kg | 7500 |
| Machine Dimensions (L × W × H) | mm | 3800 × 3800 × 2700 |
Typical DK77120 Applications
The DK77120 can be considered for Fast Wire EDM machining of electrically conductive workpieces where very large workpiece size, 1000 mm machining thickness, high processing load and wide taper cutting capability are required.
Large Mold & Die Components
Fast Wire EDM profile cutting of large conductive mold, die and tooling components.
Heavy Precision Components
Suitable for large conductive components requiring controlled contours and precision profile cutting.
Large Tooling
Suitable for Wire EDM cutting of large tooling, inserts and related conductive components.
Heavy Electrical Components
Profile cutting of suitable electrically conductive components within the available machining range.
Large Metal Parts
Suitable for very large conductive workpieces requiring extended travel, high load capacity and thick-section cutting.
General Metalworking
Wire EDM cutting of electrically conductive metal workpieces within the DK77120 machining capacity.
Suitable Conductive Materials
Wire EDM requires electrically conductive workpiece materials. Actual machining capability depends on material, workpiece dimensions, thickness and cutting requirements.
Is the DK77120 Suitable for Your Application?
Compare your machining requirements with the DK77120 capacity.
The DK77120 Wire EDM Machine may be considered when your workpiece size and machining requirements are compatible with its 1900 × 1500 mm worktable, 1200 × 1400 mm worktable travel and 1000 mm maximum machining thickness.
Before selecting the machine, compare your workpiece dimensions, weight, machining thickness and taper requirements with the listed technical specifications.
- Worktable size requirement within 1900 × 1500 mm
- Worktable travel requirement within 1200 × 1400 mm
- Maximum machining thickness requirement within 1000 mm
- Maximum processing load requirement within 1800 kg
- Taper cutting requirement compatible with 6°–45° / 80 mm specification
If you are unsure which model is suitable, submit your machining requirements through our Request a Quote page.
Compare Fast Wire EDM Models
Compare Fast Wire EDM models according to worktable size, travel, machining thickness and workpiece load requirements.
DK77120 Wire EDM Machine FAQ
What is the worktable size of the DK77120?
The supplied specification lists a 1900 × 1500 mm worktable.
What is the worktable travel?
The DK77120 provides 1200 × 1400 mm worktable travel.
What is the maximum machining thickness?
The maximum machining thickness is specified at 1000 mm.
What is the maximum processing load?
The supplied specification lists a maximum processing load of 1800 kg.
What is the maximum machining taper?
The supplied specification lists a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
How does the DK77120 compare with the DK77100?
The DK77120 provides a larger worktable, greater worktable travel and a significantly higher processing load capacity than the DK77100, while both models are specified with 1000 mm maximum machining thickness.
Need a Quote for the DK77120?
Send us your workpiece material, dimensions, machining thickness, taper requirements, quantity and destination. We can review whether the DK77120 is suitable for your application and discuss quotation requirements.
