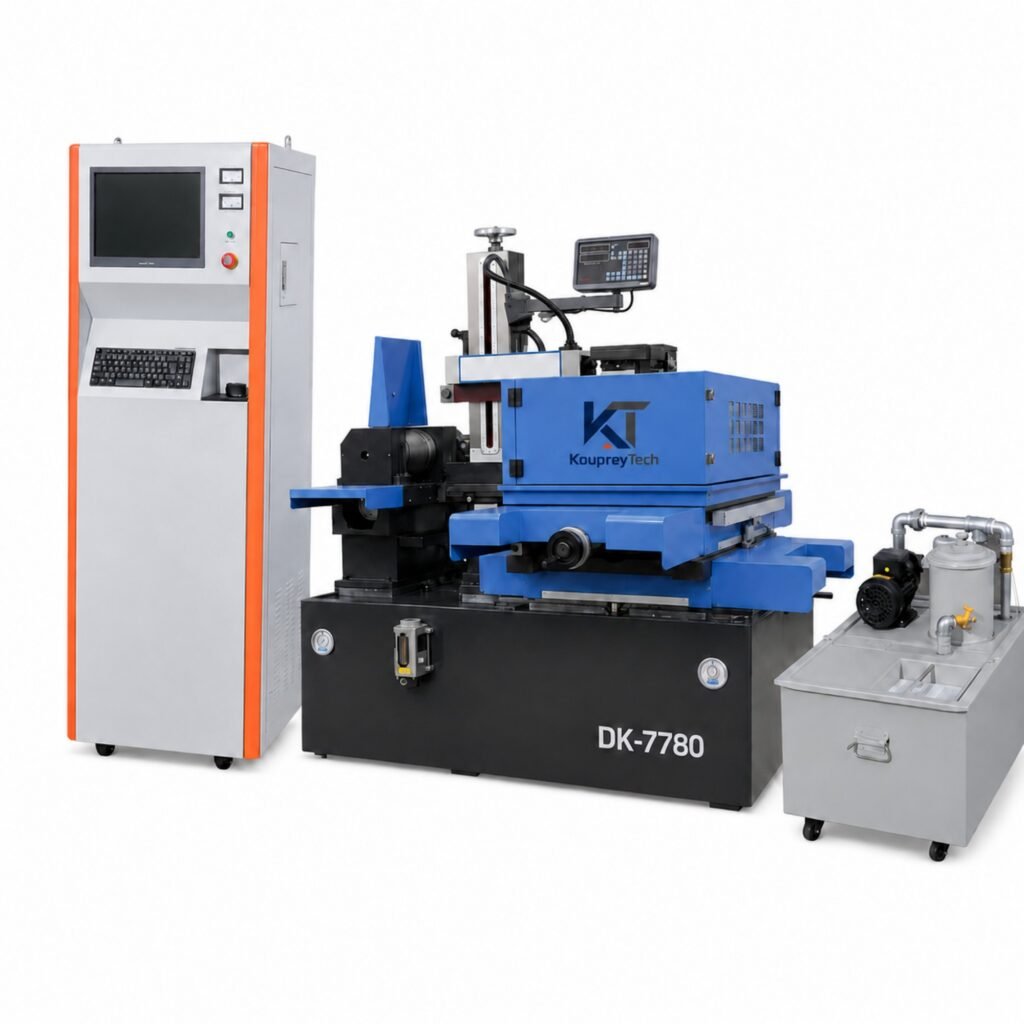

DK7780 Wire EDM Machine – Fast Wire Cutting
The DK7780 Wire EDM Machine is a large-capacity fast wire cutting model designed for precision machining of electrically conductive workpieces. It features a 1350 × 980 mm worktable, 800 × 1000 mm worktable travel and a maximum machining thickness of 800 mm.
- Worktable size: 1350 × 980 mm
- Worktable travel: 800 × 1000 mm
- Maximum machining thickness: 800 mm
- Maximum machining taper: 6°–45° / 80 mm
- Maximum processing load: 1000 kg
- Machine weight: 5000 kg
PRODUCT OVERVIEW
DK7780 Wire EDM Machine Overview
The DK7780 Wire EDM Machine is part of the Fast Wire EDM series and is designed for precision wire cutting of electrically conductive materials where larger workpiece capacity is required.
The machine is equipped with a 1350 × 980 mm worktable and provides 800 × 1000 mm worktable travel. According to the supplied specification, the maximum machining thickness is 800 mm.
For angled cutting requirements, the DK7780 is specified with a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
The maximum processing load is 1000 kg, while the machine weight is listed at 5000 kg. Its overall dimensions are 2400 × 2100 × 2300 mm.
You can compare the DK7780 with other models in our Wire EDM Machines range or review typical machining uses on our Applications page.
DK7780 Key Data
- 1350 × 980 mm worktable
- 800 × 1000 mm worktable travel
- 800 mm maximum machining thickness
- 6°–45° / 80 mm maximum machining taper
- 1000 kg maximum processing load
- 5000 kg machine weight
Key Features of the DK7780 Wire EDM Machine
Large Worktable
The 1350 × 980 mm worktable provides substantial capacity for Fast Wire EDM machining of larger electrically conductive workpieces.
800 × 1000 mm Worktable Travel
The DK7780 provides 800 × 1000 mm worktable travel for precision profile cutting within its available machining range.
800 mm Machining Thickness
The supplied specification lists a maximum machining thickness of 800 mm.
Wide Taper Cutting Range
The DK7780 supports a maximum machining taper range of 6°–45° at a specified workpiece thickness of 80 mm.
1000 kg Processing Load
The worktable supports a maximum processing load of 1000 kg according to the supplied specification.
Heavy-Duty Machine Capacity
The machine has overall dimensions of 2400 × 2100 × 2300 mm and a listed machine weight of 5000 kg.
DK7780 Wire EDM Machine Technical Specifications
Technical values below are based on the supplied DK7780 Fast Wire EDM specification.
| Specification | Unit | DK7780 |
|---|---|---|
| Worktable Size | mm | 1350 × 980 |
| Worktable Travel | mm | 800 × 1000 |
| Maximum Machining Thickness | mm | 800 |
| Maximum Machining Taper | — | 6°–45° / 80 mm |
| Maximum Processing Load | kg | 1000 |
| Machine Weight | kg | 5000 |
| Machine Dimensions (L × W × H) | mm | 2400 × 2100 × 2300 |
Typical DK7780 Applications
The DK7780 can be considered for Fast Wire EDM machining of electrically conductive workpieces where large workpiece size, 800 mm machining thickness, high processing load and wide taper cutting capability are required.
Large Mold & Die Components
Fast Wire EDM profile cutting of larger conductive mold, die and tooling components.
Precision Components
Suitable for conductive components requiring controlled contours and precision profile cutting.
Large Tooling
Suitable for Wire EDM cutting of larger tooling, inserts and related conductive components.
Heavy Electrical Components
Profile cutting of suitable electrically conductive components within the available machining range.
Large Metal Parts
Suitable for larger conductive workpieces requiring extended travel, high load capacity and thick-section cutting.
General Metalworking
Wire EDM cutting of electrically conductive metal workpieces within the DK7780 machining capacity.
Suitable Conductive Materials
Wire EDM requires electrically conductive workpiece materials. Actual machining capability depends on material, workpiece dimensions, thickness and cutting requirements.
Is the DK7780 Suitable for Your Application?
Compare your machining requirements with the DK7780 capacity.
The DK7780 Wire EDM Machine may be considered when your workpiece size and machining requirements are compatible with its 1350 × 980 mm worktable, 800 × 1000 mm worktable travel and 800 mm maximum machining thickness.
Before selecting the machine, compare your workpiece dimensions, weight, machining thickness and taper requirements with the listed technical specifications.
- Worktable size requirement within 1350 × 980 mm
- Worktable travel requirement within 800 × 1000 mm
- Maximum machining thickness requirement within 800 mm
- Maximum processing load requirement within 1000 kg
- Taper cutting requirement compatible with 6°–45° / 80 mm specification
If you are unsure which model is suitable, submit your machining requirements through our Request a Quote page.
Compare Fast Wire EDM Models
Compare Fast Wire EDM models according to worktable size, travel, machining thickness and workpiece load requirements.
DK7780 Wire EDM Machine FAQ
What is the worktable size of the DK7780?
The supplied specification lists a 1350 × 980 mm worktable.
What is the worktable travel?
The DK7780 provides 800 × 1000 mm worktable travel.
What is the maximum machining thickness?
The maximum machining thickness is specified at 800 mm.
What is the maximum processing load?
The supplied specification lists a maximum processing load of 1000 kg.
What is the maximum machining taper?
The supplied specification lists a maximum machining taper range of 6°–45° at 80 mm workpiece thickness.
How does the DK7780 compare with the DK7763?
The DK7780 provides a larger worktable, greater worktable travel, increased maximum machining thickness and a higher processing load capacity than the DK7763.
Need a Quote for the DK7780?
Send us your workpiece material, dimensions, machining thickness, taper requirements, quantity and destination. We can review whether the DK7780 is suitable for your application and discuss quotation requirements.
